Camel的Exchange分析

本文基于Camel版本2.20.1。

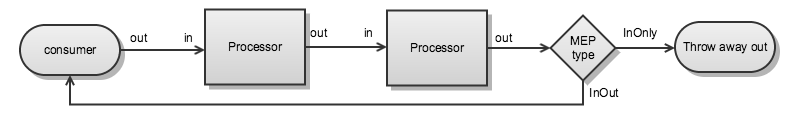

一、Exchange在Route中传递

地址：https://camel.apache.org/manual/latest/faq/using-getin-or-getout-methods-on-exchange.html

• The out message from each step is used as the in message for the next step
• if there is no out message then the in message is used instead
• For the InOut MEP the out from the last step in the route is returned to the producer. In case of InOnly the last out is thrown away

NOTE：关于Exchange类型InOnly和InOut的区别只在末端处理。

二、Exchange的In和Out交换逻辑

1. Pipeline#process

org.apache.camel.processor.Pipeline#process(org.apache.camel.Exchange, org.apache.camel.AsyncCallback)

public boolean process(Exchange exchange, AsyncCallback callback) {
        Iterator<Processor> processors = getProcessors().iterator();
        Exchange nextExchange = exchange;
        boolean first = true;

        while (continueRouting(processors, nextExchange)) {
            if (first) {
                first = false;
            } else {
                // prepare for next run
                nextExchange = createNextExchange(nextExchange);
            }

            // get the next processor
            Processor processor = processors.next();

            AsyncProcessor async = AsyncProcessorConverterHelper.convert(processor);
            boolean sync = process(exchange, nextExchange, callback, processors, async);

            // continue as long its being processed synchronously
            if (!sync) {
                LOG.trace("Processing exchangeId: {} is continued being processed asynchronously", exchange.getExchangeId());
                // the remainder of the pipeline will be completed async
                // so we break out now, then the callback will be invoked which then continue routing from where we left here
                return false;
            }

            LOG.trace("Processing exchangeId: {} is continued being processed synchronously", exchange.getExchangeId());

            // check for error if so we should break out
            if (!continueProcessing(nextExchange, "so breaking out of pipeline", LOG)) {
                break;
            }
        }

        // logging nextExchange as it contains the exchange that might have altered the payload and since
        // we are logging the completion if will be confusing if we log the original instead
        // we could also consider logging the original and the nextExchange then we have *before* and *after* snapshots
        LOG.trace("Processing complete for exchangeId: {} >>> {}", exchange.getExchangeId(), nextExchange);

        // copy results back to the original exchange
        ExchangeHelper.copyResults(exchange, nextExchange);

        callback.done(true);
        return true;
}

protected Exchange createNextExchange(Exchange previousExchange) {
        return PipelineHelper.createNextExchange(previousExchange);
 }

Pipeline中的Processors是Route中的Processor链，其中createNextExchange方法用来处理Exchange在Processor调用前的准备操作。

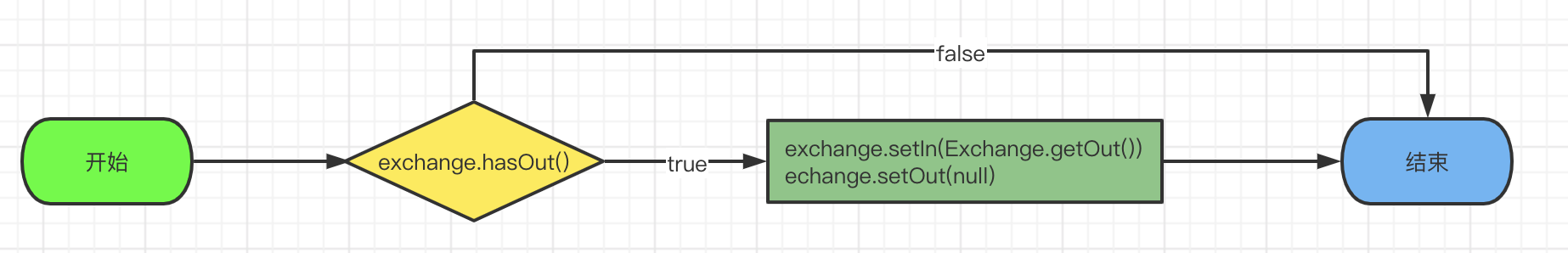

2. PipelineHelper#createNextExchange

org.apache.camel.processor.PipelineHelper#createNextExchange

public static Exchange createNextExchange(Exchange previousExchange) {
        Exchange answer = previousExchange;

        // now lets set the input of the next exchange to the output of the
        // previous message if it is not null
        if (answer.hasOut()) {
            answer.setIn(answer.getOut());
            answer.setOut(null);
        }
        return answer;
    }

从上面源码可知，在进行下一个Processor调用前会重置In。

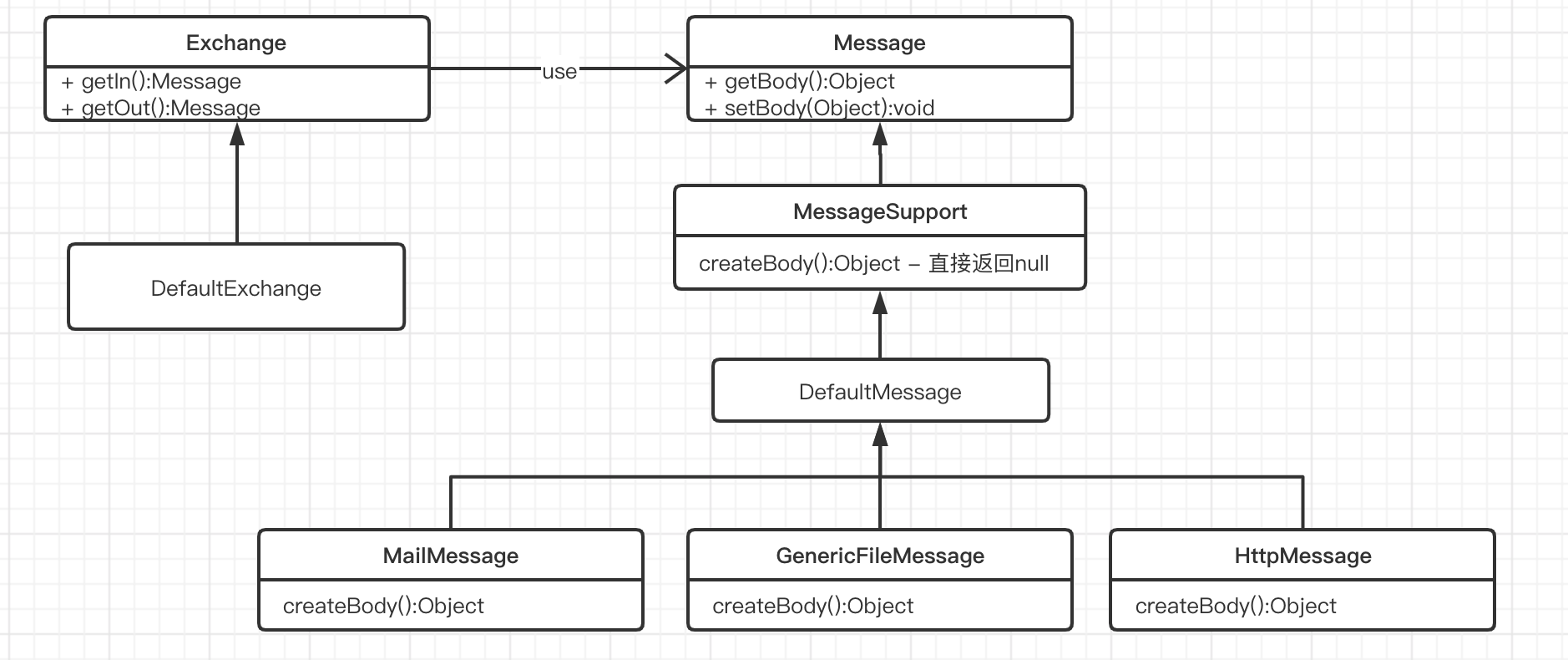

三、Exchange的类图

四、message.setBody(null)后取值问题

当通过*exchange.getIn().setBody(null)或者exchange.getOut().setBody(null)*后。

• 当Message类型为DefaultMessage时，通过message.getBody可以正常取出null值。

• 当Message类型为MailMessage,GenericFileMessage,HttpMessage时，由于他们重写了createBody方法，调用message.getBody时会重新初始化body为非null。

// GenericFileMessage#createBody
@Override
protected Object createBody() {
        return file != null ? file.getBody() : super.createBody();
}

举例来说，Consumer为FTP时，其会初始化Message为GenericFileMessage类型，一但其中某个processor把Message的Body设置为null，那么在此获取body时会重置为文件内容。

# 其他、关于exchange.getOut()

// DefaultExchange#getOut
public Message getOut() {
        // lazy create
        if (out == null) {
            out = (in != null && in instanceof MessageSupport)
                ? ((MessageSupport)in).newInstance() : new DefaultMessage(getContext());
            configureMessage(out);
        }
        return out;
}

当Out不存在时，会使用In的内容创建Out。
