left_join时on后多条件AND

一、left join的ON中多条件AND

1）left join的on条件一般只写一个主键关联的字段，例如：

1
SELECT * FROM product LEFT JOIN product_details ON product.id = product_details.id;

2）当left join的on条件有多个时，大部分是要通过多个条件限制结果集，应改用inner join，例如：

1
SELECT * FROM product LEFT JOIN product_details ON product.id = product_details.id AND product_details.weight > 30

二、实例演示

1）准备两个表及初始化数据（语句来源）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CREATE TABLE `product` (
  `id` int(10) unsigned NOT NULL auto_increment,
  `amount` int(10) unsigned default NULL,
  PRIMARY KEY  (`id`)
) ENGINE=MyISAM AUTO_INCREMENT=5 DEFAULT CHARSET=latin1;

CREATE TABLE `product_details` (
  `id` int(10) unsigned NOT NULL,
  `weight` int(10) unsigned default NULL,
  `exist` int(10) unsigned default NULL,
  PRIMARY KEY  (`id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1;

INSERT INTO product (id,amount) VALUES (1,100),(2,200),(3,300),(4,400);
INSERT INTO product_details (id,weight,exist) VALUES (2,22,0),(4,44,1),(5,55,0),(6,66,1);

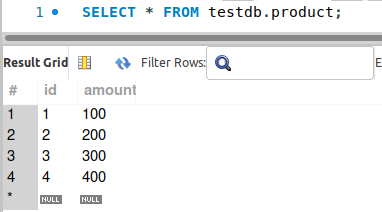

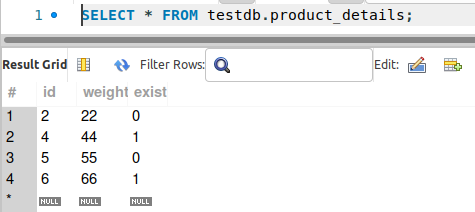

表数据如下：

image-20210528181248667

image-20210528181335272

2）执行以下SQL查询

1
2
3
# 结果符合预期
SELECT * FROM product LEFT JOIN product_details
    ON product.id=product_details.id;

image-20210528181457413

1
2
3
4
5
6
# ON的多个条件进行AND，括号不影响结果
SELECT * FROM product LEFT JOIN product_details
    ON product.id=product_details.id AND product.id=2;

SELECT * FROM product LEFT JOIN product_details
    ON (product.id=product_details.id AND product.id=2);

image-20210528181710452

1
2
3
4
5
SELECT * FROM product LEFT JOIN product_details
    ON product.id=product_details.id AND product_details.id=2;

SELECT * FROM product LEFT JOIN product_details
    ON (product.id=product_details.id AND product_details.id=2);

image-20210528181710452

1
SELECT * FROM product LEFT JOIN product_details ON product.id=2;

image-20210528182357078

1
SELECT * FROM product LEFT JOIN product_details ON product_details.id=2;

image-20210528182449015

三、left join匹配原理

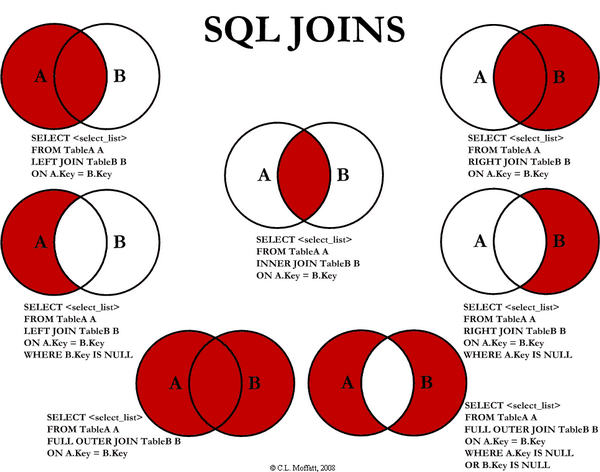

1）从结果集来看，参考链接：

enter image description here

2）匹配顺序（NLJ为例）

1
SELECT * FROM A left join B ON condition1 AND condition2;

如上的LEFT 左侧表A为驱动表，右侧为被驱动表。假设当前使用NLJ的嵌套关联方法，其执行伪代码可简化如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
List rows = new ArrayList();

for rowA in table A {
      List rowAMatchList = new ArrayList();
    for rowB in table B {
        joinRow = rowA join rowB;
        if (joinRow match (condition1 AND condition2)) {
            rowAMatchList.add(joinRow);
        }
    }
    if (empty rowAMatchList) {
      rowAMathList.add(rowA join null);
    }

    rows.addAll(rowAMatchList);
}

# 参考

  1. https://stackoverflow.com/questions/14660330/mysql-left-join-with-multiple-tables
  2. https://www.codeproject.com/Articles/33052/Visual-Representation-of-SQL-Joins
