Map

一、存储结构

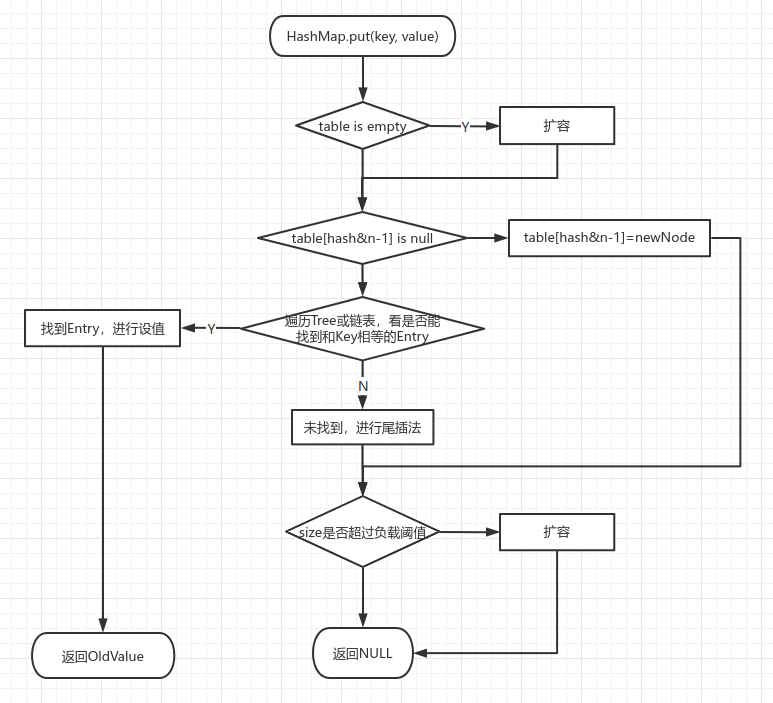

二、HashMap.put流程

1）遍历Tree时根据Hash值进行查询。Tree是根据Hash构建的红黑树。

2）new HashMap不设置初始容量时table为null，put第一个元素时会创建长度为16的table。

3）放入元素后，判定size超过负载后会扩容，负载 = tablesize * 负载因子默认0.75。

I、不扩容条件：预期元素数量 < tableSize * 0.75，那么tableSize > 预期元素数量 / 0.75 = 预期元素个数 * 4 / 3。

II、如预期放一个元素，那么初始容量设置最小为2。

4）初始size会经过计算转换为大于它的最小2的幂值。便于计算下标：keyHash & (table.size - 1)

5）扩容：JDK7并发时可能出现环线链表，导致死循环。JDK8通过高低位扩容方式避免了死锁发生。

三、ConcurrentHashMap

1）JDK8通过syncronized锁定bucket，也就是bucket的第一个Node。

2）JDK7通过分段锁来锁定，分段锁依赖ReentrantLock。内置多个分段锁，访问时通过key模除获取要使用的分段锁。

四、Table长度为什么是2的幂

1、HashMap中table的size

1）table的size为power of two,即2^n。

2）若不指定大小，table的默认size为2^4

3）若通过构造函数传入initialCapacity，则根据**tableSizeFor(int cap)**计算table的size。

2、HashMap的table的初始化时机

table在初次使用时才会初始化。

3、为什么table的大小是2的幂？

HashMap根据**(table.length-1) & hash来把对象值映射到table的某个坐标。此处，table.length-1起到了一个mask的作用。此处的hash是经过spread后的，参见static final int hash(Object key)**。

 /**
  * The table, initialized on first use, and resized as
  * necessary. When allocated, length is always a power of two.
  * (We also tolerate length zero in some operations to allow
  * bootstrapping mechanics that are currently not needed.)
  */
 transient Node<K,V>[] table;

 public HashMap(int initialCapacity) {
     this(initialCapacity, DEFAULT_LOAD_FACTOR);
 }

 /**
  * Returns a power of two size for the given target capacity.
  */
 static final int tableSizeFor(int cap) {
     int n = cap - 1;
     n |= n >>> 1;
     n |= n >>> 2;
     n |= n >>> 4;
     n |= n >>> 8;
     n |= n >>> 16;
     return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1;
 }

/**
  * Implements Map.get and related methods.
  *
  * @param hash hash for key
  * @param key the key
  * @return the node, or null if none
  */
 final Node<K,V> getNode(int hash, Object key) {
     Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
     if ((tab = table) != null && (n = tab.length) > 0 &&
         (first = tab[(n - 1) & hash]) != null) {
         if (first.hash == hash && // always check first node
             ((k = first.key) == key || (key != null && key.equals(k))))
             return first;
         if ((e = first.next) != null) {
             if (first instanceof TreeNode)
                 return ((TreeNode<K,V>)first).getTreeNode(hash, key);
             do {
                 if (e.hash == hash &&
                     ((k = e.key) == key || (key != null && key.equals(k))))
                     return e;
             } while ((e = e.next) != null);
         }
     }
     return null;
 }

/**
  * Computes key.hashCode() and spreads (XORs) higher bits of hash
  * to lower.  Because the table uses power-of-two masking, sets of
  * hashes that vary only in bits above the current mask will
  * always collide. (Among known examples are sets of Float keys
  * holding consecutive whole numbers in small tables.)  So we
  * apply a transform that spreads the impact of higher bits
  * downward. There is a tradeoff between speed, utility, and
  * quality of bit-spreading. Because many common sets of hashes
  * are already reasonably distributed (so don't benefit from
  * spreading), and because we use trees to handle large sets of
  * collisions in bins, we just XOR some shifted bits in the
  * cheapest possible way to reduce systematic lossage, as well as
  * to incorporate impact of the highest bits that would otherwise
  * never be used in index calculations because of table bounds.
  */
 static final int hash(Object key) {
     int h;
     return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
 }
